Italian Type
Italian type forged half coupler
Scaffold coupler, also known as scaffold clamp, is an integral part of the scaffolding system. Generally, it consists of half-ring main bodies, T-bolts, nuts and gaskets. The main body of the coupler is manufactured by forging process, therefore, it is also known as forged coupler.
It can work with steel tubes to form a flexible tube and coupler system. In addition, it can also work with ringlock scaffolding, cuplock scaffolding and quicklock scaffolding to provide more flexible connection where a single scaffolding system cannot reached.
All scaffold couplers are manufactured in accordance with BS 1139 standards and EN 74 standards.
We have various types of scaffold couplers like Italian type, German type, British type and American type.
Dimensions
48.3 x 48.3 mm (1-29/32" x 1-29/32")
Material
drop forged carbon steel
Bolt
T-bolt and hammer bolt
Nut sizes
17 mm, 19 mm, 21 mm, 22 mm, 23 mm
Surfaces treatment
hot dip galvanized, gold galvanized
Notes:
Designed to fit tubes with a diameter ranging from 33.7 mm (1-11/32") to 88.9 mm (3-1/2").
Italian type forged half coupler

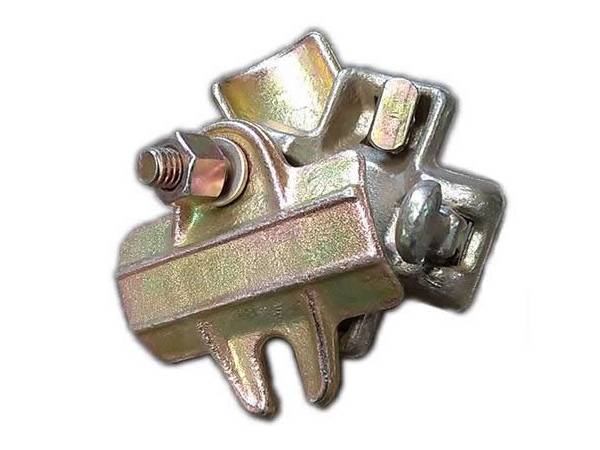

Italian type forged double coupler

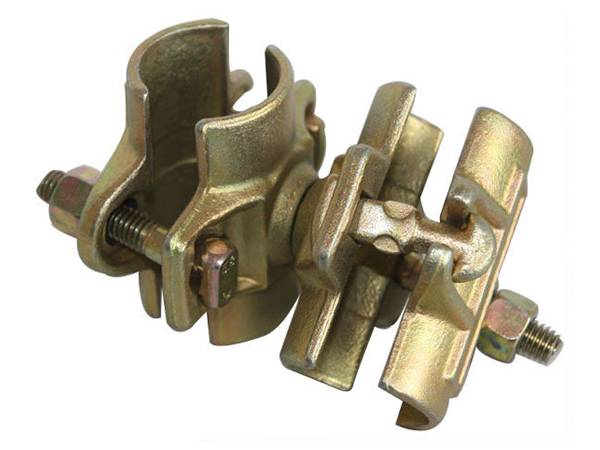

Italian type forged swivel coupler

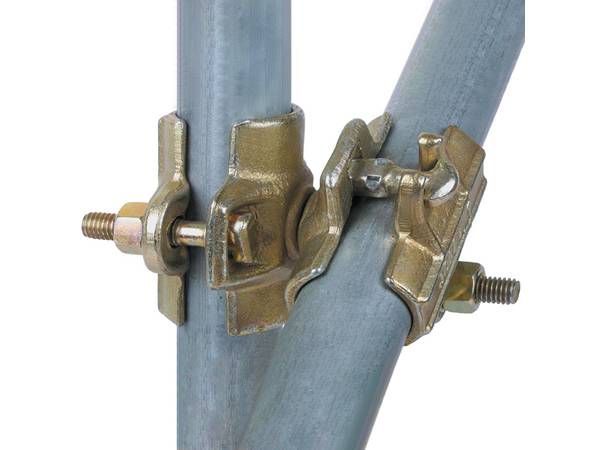

Italian type forged swivel coupler connection

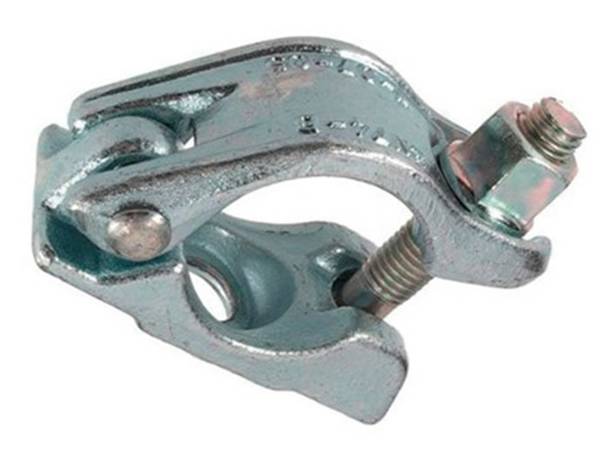

German type forged half coupler

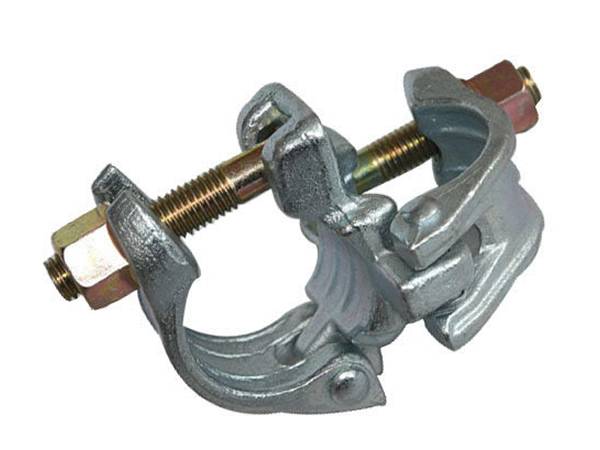

German type forged double coupler
German type forged swivel coupler

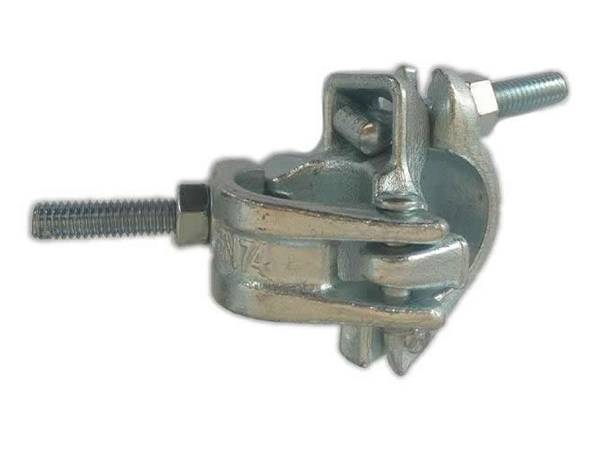

British type forged double coupler
British type forged swivel coupler

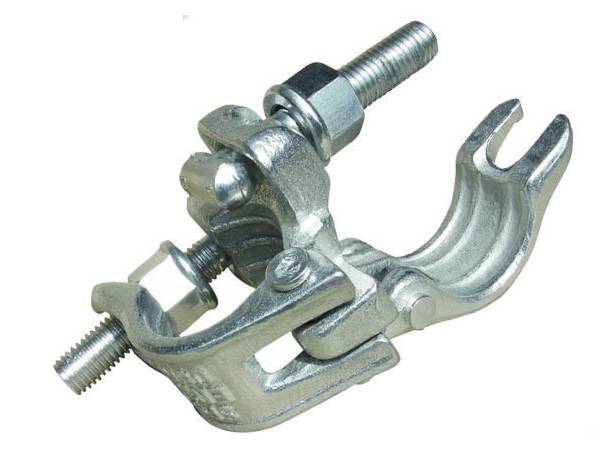

British type anti-slip double coupler

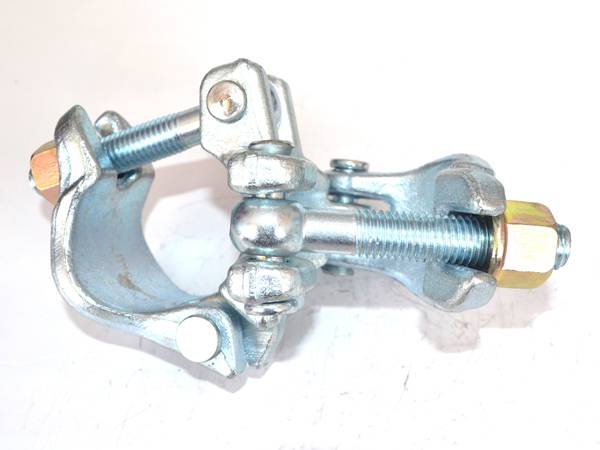

An American double coupler

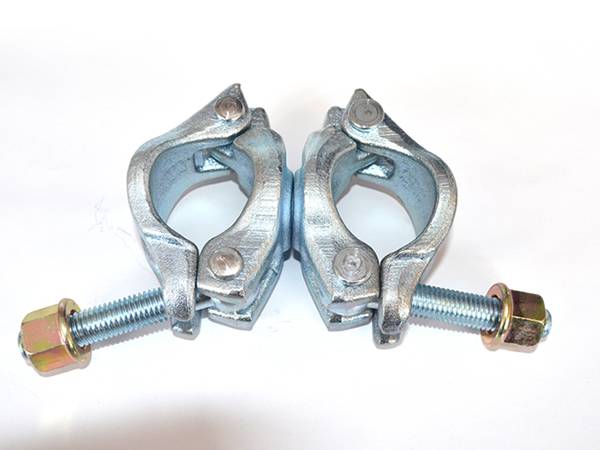

American type swivel coupler
Swivel girder coupler
British type putlog coupler

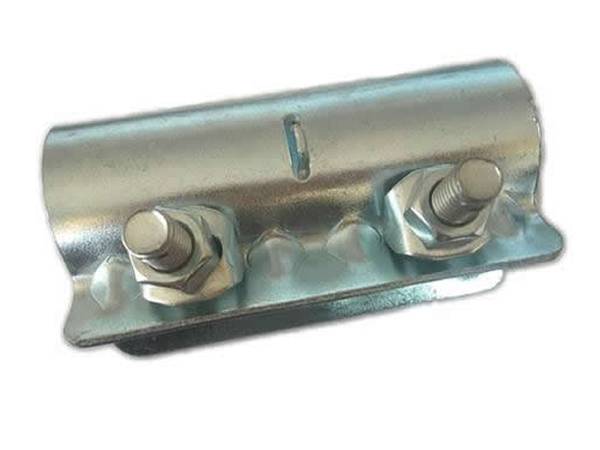

Scaffold sleeve coupler
